Hakan Nickel Alloys, based in Istanbul, Turkey, makes Niobium Sheets and Plates, which are strong, shiny metal sheets that resist rust and corrosion. These sheets and plates are carefully made to be smooth, precise, and long-lasting. Niobium Sheets and Plates are perfect for industries where metals need to stay strong and reliable under heat, chemicals, or tough conditions, like chemical plants, aerospace, and electronics. At Hakan Nickel Alloys, we make sure every sheet and plate meets high-quality standards, giving engineers and builders materials they can trust for safe and durable applications.
Niobium Sheets and Plates are made from pure niobium metal. This makes them very strong, corrosion-resistant, and stable at high temperatures. They can handle heavy stress, heat, and chemicals without bending, cracking, or rusting. These sheets and plates are tough but light enough to handle easily. Their strength and stability make them ideal for building chemical tanks, aerospace parts, electronic equipment, and machines that need metals that last a long time while staying safe and reliable.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

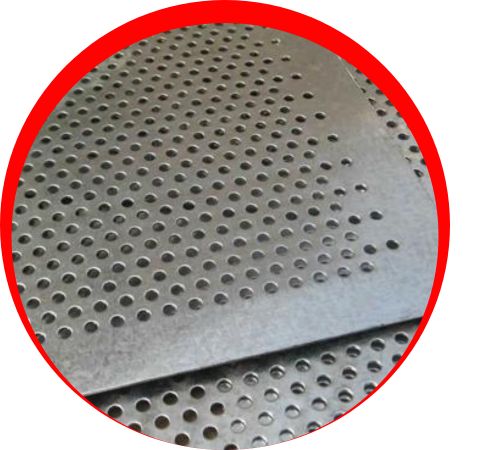

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
At Hakan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Niobium Sheet and Plates in Istanbul, Turkey, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Turkey, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Niobium Sheets and Plates are used wherever strong, corrosion-resistant, and heat-resistant metal is needed. In chemical industries, they are used for reactors, tanks, and piping that handle aggressive chemicals. Aerospace industries use them for engine parts, exhaust systems, and high-temperature components. Electronics industries use niobium sheets in capacitors, circuits, and other devices that need stable metals. Industrial machines also benefit from niobium’s strength and durability. With their resistance to rust, heat, and chemicals, Niobium Sheets and Plates give engineers and builders safe, reliable, and long-lasting materials for many tough applications.
