Hakan Nickel Alloys, located in Istanbul, Turkey, has made a name for itself as a top-notch manufacturer and supplier of high-quality nickel alloy products. As a prominent **Inconel 718 Stud Bolts Manufacturer in Dubai, UAE**, the company specializes in crafting precision-engineered fasteners that excel in even the toughest conditions. With a strong focus on quality, reliability, and adherence to international standards, Hakan Nickel Alloys serves a variety of industries, including oil and gas, petrochemicals, power generation, and aerospace. Their commitment to cutting-edge manufacturing techniques and rigorous quality control has built them a solid reputation among clients looking for durable and high-performance fastening solutions.

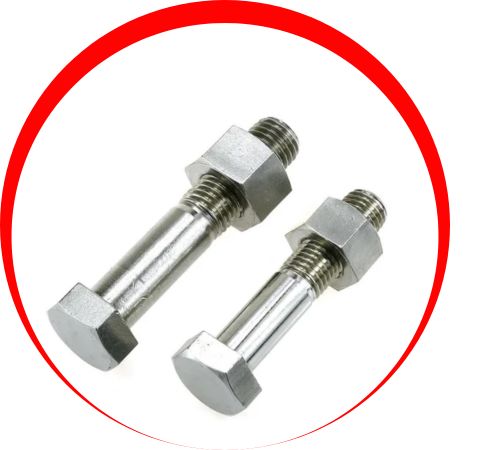

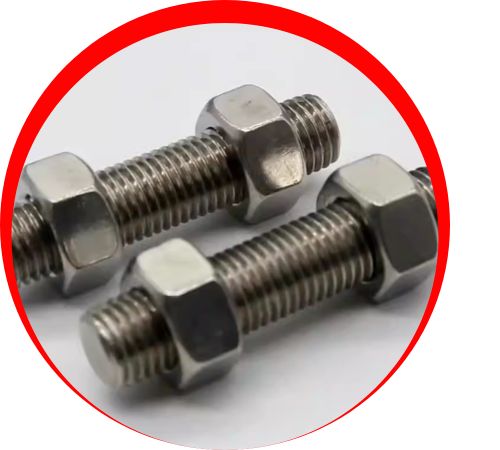

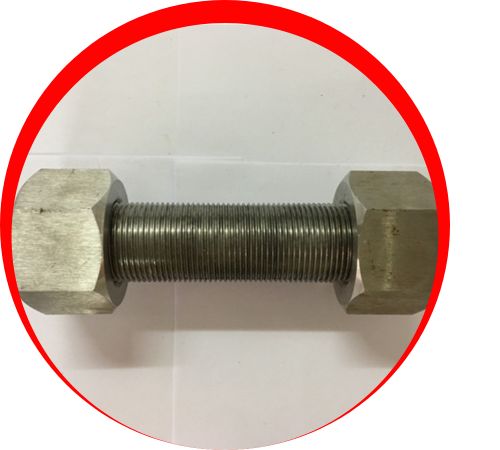

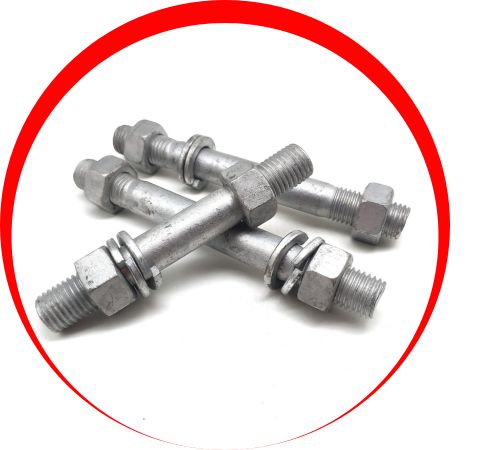

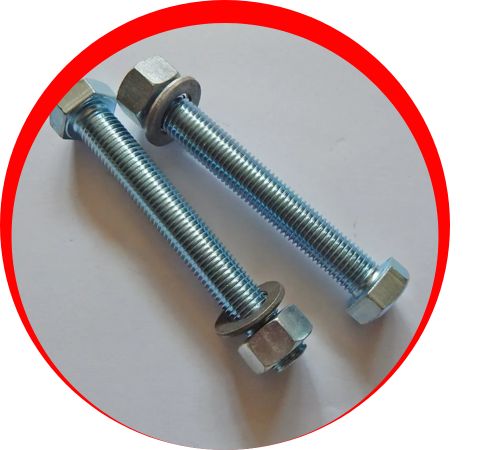

Inconel 718 Stud Bolts are made from a nickel-chromium base alloy, enhanced with niobium, molybdenum, and iron, which gives them remarkable strength and durability. These fasteners boast impressive tensile and yield strength, even at high temperatures reaching up to 700°C. They also offer excellent corrosion resistance, particularly against oxidation and pitting in harsh environments. Their mechanical properties include high fatigue resistance, creep-rupture strength, and outstanding toughness. This unique blend of superior characteristics ensures that Inconel 718 Stud Bolts are dependable and long-lasting in critical engineering applications where strength and stability are essential.
| Specification | ASTM F468, B637 / ASME SF468, SB637 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Inconel 718 Stud Bolts find extensive use in industries where strength, heat resistance, and corrosion protection are vital. In the aerospace field, they secure engine components, turbines, and exhaust systems that face extreme heat and stress. In the oil and gas sector, they are utilized in drilling equipment, subsea systems, and high-pressure vessels, thanks to their durability in challenging environments. Power generation facilities use them in gas turbines and nuclear reactors. Moreover, chemical processing plants depend on these fasteners for their resistance to corrosive substances, ensuring safe and reliable operations in demanding conditions.
Contact us to get a quick quote for your requirement.
Inconel 718 stud bolts are used in high temperature and high-pressure environments where exceptional strength and corrosion resistance are critical. Typical applications include aerospace applications such as turbine engines and exhaust systems, where their thermal resistance ensures reliability. It is used in oil and gas drilling and power generation equipment to ensure longevity under extreme conditions. Additionally, Inconel 718 stud bolts are used in nuclear reactors for their resistance to wind and thermal stresses, providing long service life and reliability under harsh industrial conditions.
