Incoloy 825 Forgings are made mainly of nickel, iron, and chromium, with small amounts of molybdenum and copper. This makes them strong, corrosion-resistant, and able to handle very high temperatures and pressure. They do not crack, bend, or rust easily and remain durable even after long-term use in harsh industrial environments. These properties make Incoloy 825 Forgings ideal for pumps, valves, flanges, and other critical components in chemical plants, power plants, oil and gas industries, ships, and airplanes where ordinary steel parts would fail.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |

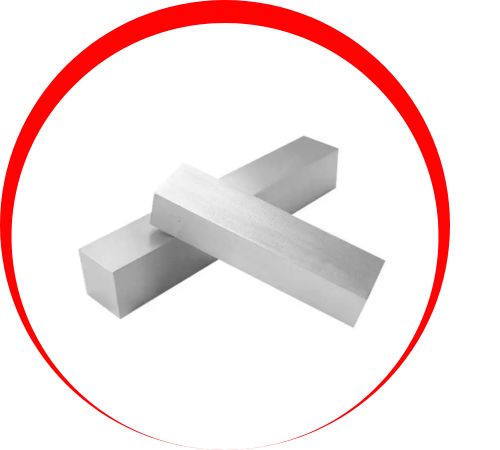

| Flat bar blocks | up to 27″ width and 15,000 lbs |

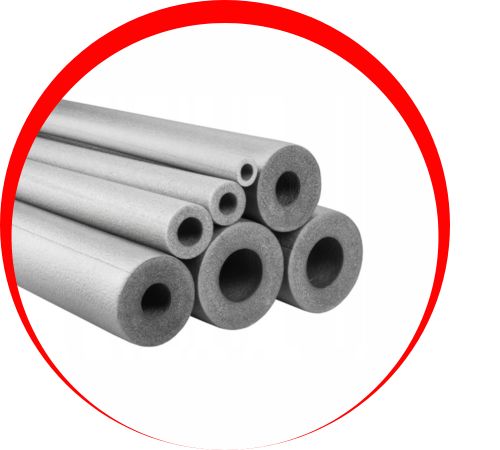

| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

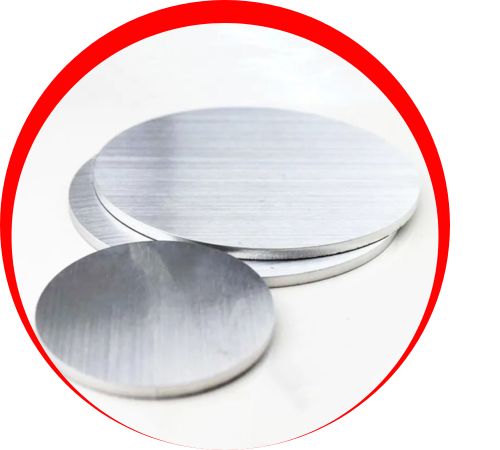

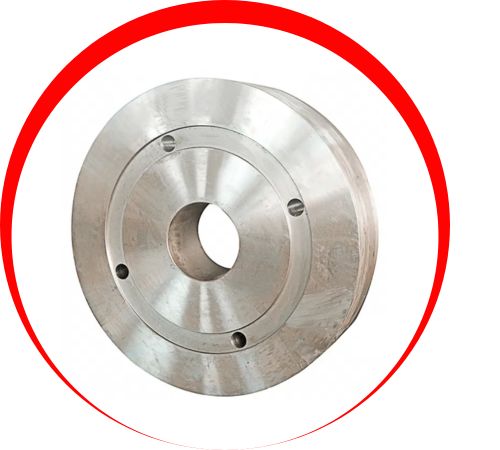

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

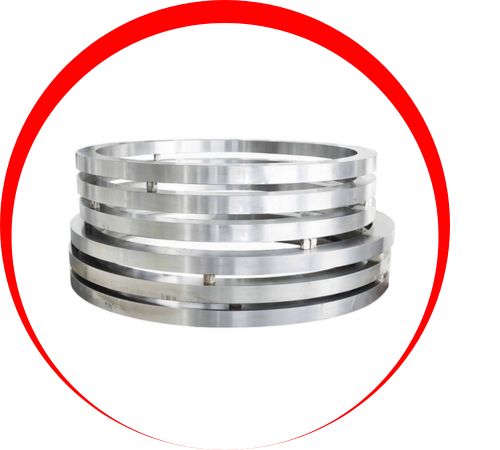

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

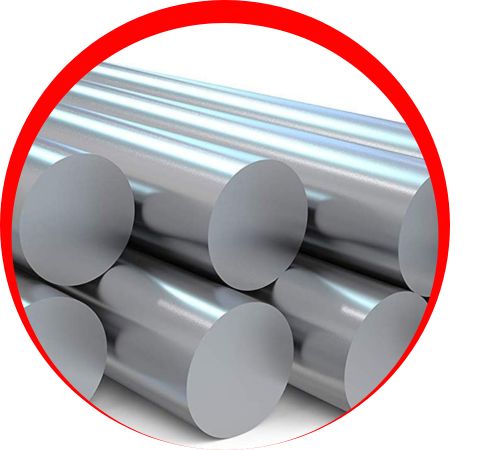

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
At Hakan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Forgings in Istanbul, Turkey, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Turkey, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 825 Forgings are used wherever strong, heat-resistant, and corrosion-resistant parts are needed. Chemical factories use them in pumps, valves, and piping equipment handling acids, chemicals, and hot liquids. Power plants use them in turbines, boilers, and high-pressure systems. Oil and gas industries rely on these forgings in pipelines, refineries, and offshore platforms. Ships use them in machinery and equipment exposed to seawater and chemicals. Airplanes use them in engines and high-temperature systems. Incoloy 825 Forgings are chosen because they are strong, reliable, safe, and long-lasting in tough industrial environments.
