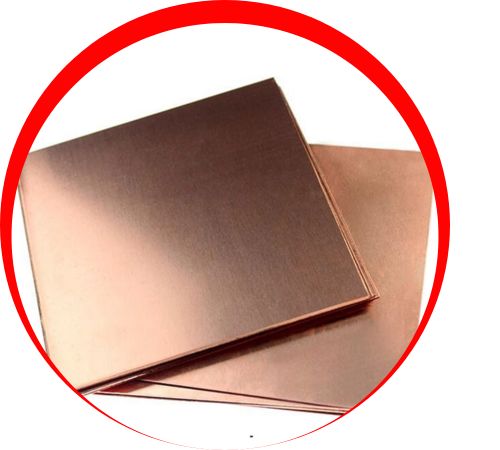

Home > Copper Nickel > Copper Nickel 70/30 Sheet and Plate
Hakan Nickel Alloys, based in Istanbul, Turkey, is a well-respected manufacturer and supplier of top-quality non-ferrous metal products, including Copper Nickel 70/30 Sheets and Plates. Known for their commitment to quality, precision, and timely delivery, the company caters to a variety of industries such as marine engineering, desalination, power generation, and chemical processing. With state-of-the-art production facilities and rigorous quality standards, Hakan Nickel Alloys guarantees that each product meets international specifications. Their Copper Nickel 70/30 Sheets and Plates are designed for exceptional strength, corrosion resistance, and long-lasting performance in challenging environments, making them a reliable choice for demanding industrial applications around the globe.
Copper Nickel 70/30 Sheets and Plates are made up of about 70% copper and 30% nickel, with small amounts of iron and manganese added to enhance strength and corrosion resistance. This alloy boasts impressive mechanical properties, featuring tensile strength between 310 and 490 MPa and yield strength ranging from 105 to 220 MPa. It retains good ductility and impact resistance across a broad temperature spectrum. Additionally, the material shows outstanding resistance to seawater corrosion, biofouling, and stress corrosion cracking, making it an excellent fit for marine and high-pressure industrial settings.
| UNS C71500 Plate Specification | MSRR, AMS, BS, ASTM B122 / ASTM B171 |
|---|---|
| Cuni 70/30 Plate Sizes (mm) | 1000 x 2000, 1220 x 2440, 1500 x 3000, 2000 x 2000, 2000 x 4000 |
| C71500 Cupro Alloy Plate Thickness | 0.1 to 100 mm Thk |
| Din 2.0882 70 30 CuNi Plate Width | 10-2500mm |
| ASTM B122 C71500 CDA 715 Plate Length | 2m, 2.44m, 3m, or as required |
| C71500 cuni Sheet AMS | AMS |
| Cu-Ni UNS C71500 70/30 Plate Finish | HR, CR, 2B, 2D, BA, NO(8), SATIN |
| ASTM B171 UNS C71500 Sheet Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Copper Nickel 70/30 Plate Stock in form of |

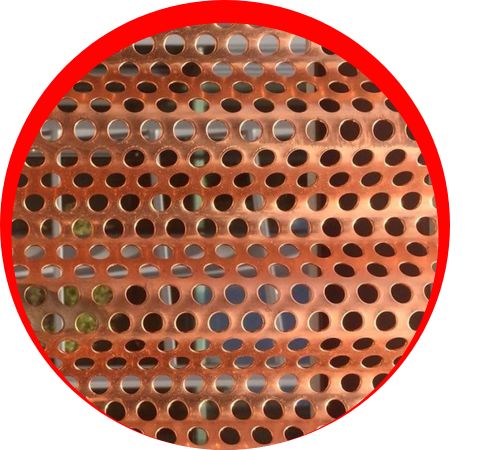

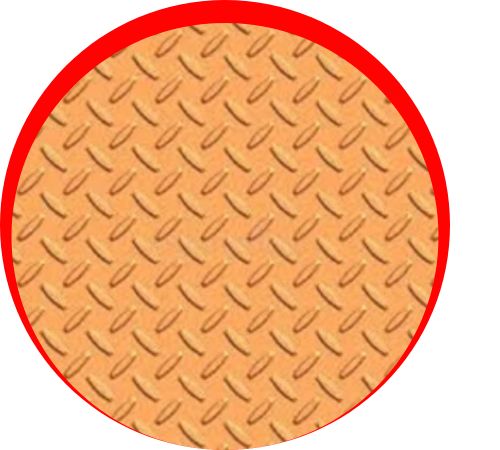

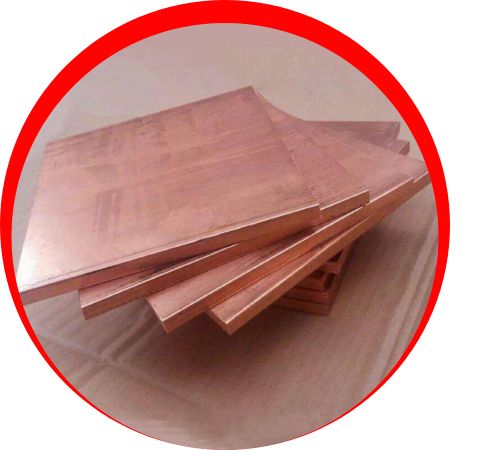

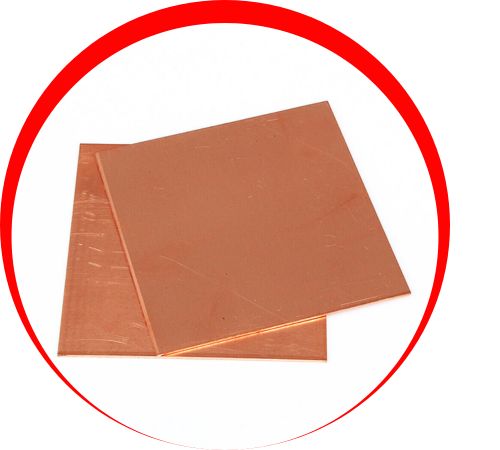

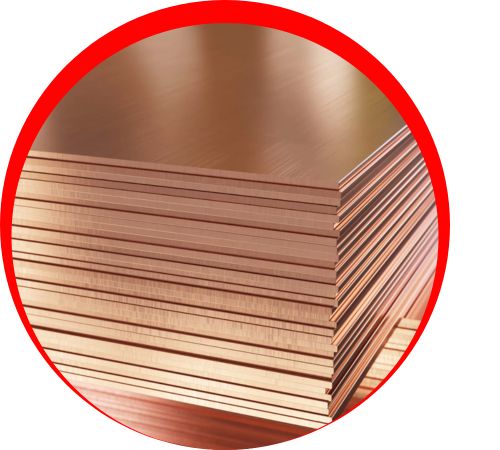

Coils, Checker, Circle, hot-rolled, Clad, annealed, Shim, Sheet, descaled, cold-rolled, Rolling, Rolls, Flat, sheared, Blank, Tread, Foils, Strip, Flats, Plate, soft-annealed, |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cupro Nickel 70/30 | 65 min | 1.0 max | 0.05 max | 29-33 max | 0.4-1.0 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Hakan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Sheets and Plates in Istanbul, Turkey, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Turkey, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 70/30 Sheets and Plates find extensive use in marine and offshore engineering, thanks to their remarkable resistance to seawater corrosion and biofouling. They are commonly used in ship hulls, deck structures, seawater intake screens, cladding for offshore platforms, and components for desalination plants. In the power generation sector, they are utilized in heat exchanger and condenser tubing, while in the chemical industry, they are perfect for handling corrosive substances. Their strength, durability, and thermal conductivity make them a go-to choice for various demanding applications.
