Hakan Nickel Alloys, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Aluminium Bronze Sheets and Plates. They specialize in delivering high-quality, copper-based products tailored for demanding industrial needs. Thanks to their advanced production techniques and rigorous quality control, every sheet and plate they produce boasts exceptional strength, impressive corrosion resistance, and remarkable wear performance. Renowned for their expertise in non-ferrous alloys, Hakan Nickel Alloys is a reliable partner for industries around the globe, providing durable and high-performance Aluminium Bronze Sheets and Plates that can handle even the toughest operating conditions.
Aluminium Bronze Sheets and Plates are primarily made of copper, with aluminum as the key alloying element. They often include iron, nickel, or manganese to boost their mechanical properties and corrosion resistance. These alloys are known for their excellent tensile and yield strength, high hardness, and outstanding resistance to seawater corrosion, cavitation, and wear. Their superb machinability, toughness, and thermal conductivity make them adaptable for a wide range of industrial applications. The blend of strength and corrosion resistance guarantees long-lasting performance, even in harsh environments.
| Specifications | ASTM B505 / ASME SB505, BS EN 10088-2, en 10028-7, IS 6911, AMS 4640, UNS C63000, UNS C95800, UZ19AL6, UNS C95510, AMS 4880 |
| Dimensions | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range | Cold Rolled : 0.5-6.4 mm Hot Rolled : 3.0–10.0 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness | 0.3 mm to 120 mm |
| International Standard of Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) | EN 10258/ DIN 59381 EN 10151 EN 10088 |

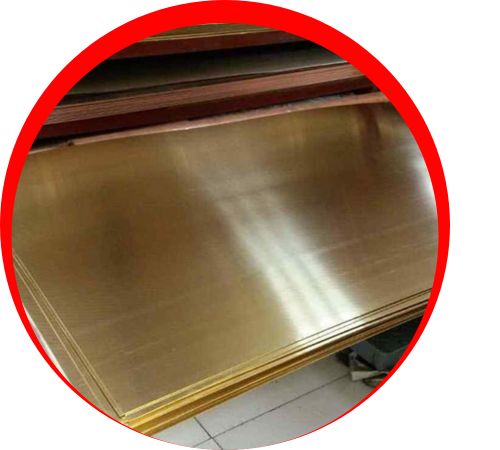

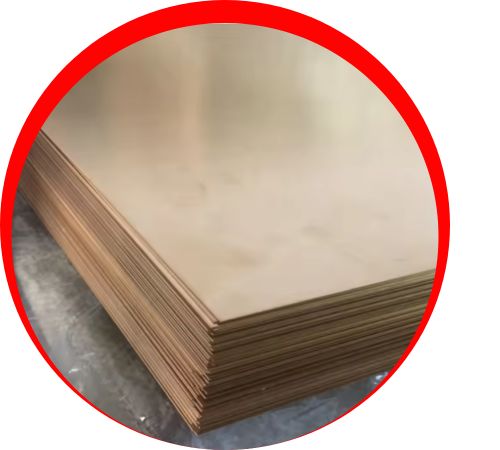

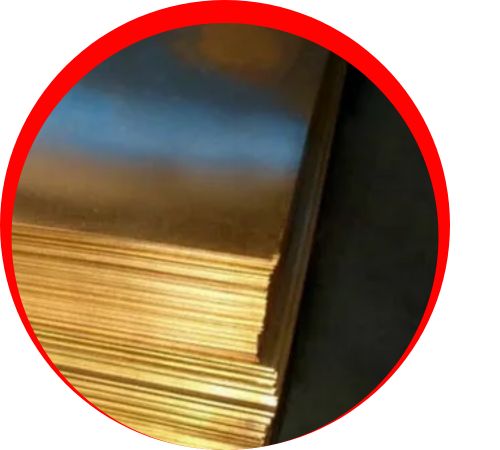

| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

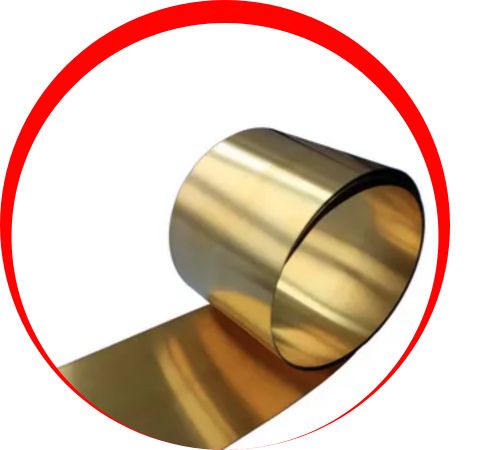

| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |

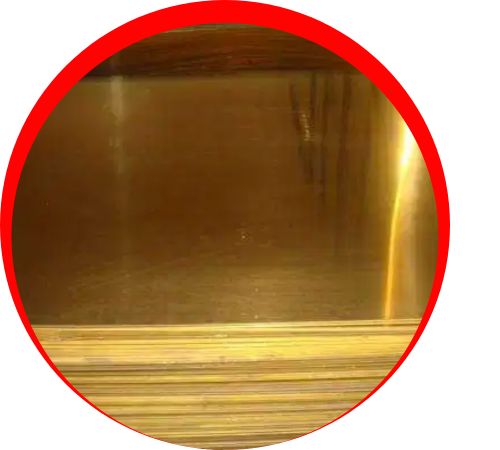

| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Alloy | Aluminium | Iron | Nickel | Manganese | Zinc | Arsenic |
| CuAl5 | 4.0–6.5% | 0.5% max. | 0.8% max. | 0.5% max. | 0.5% max. | 0.4% max. |
| CuAl8 | 7.0–9.0% | 0.5% max. | 0.8% max. | 0.5% max. | 0.5% max. | |
| CuAl8Fe3 | 6.5–8.5% | 1.5–3.5% | 1.0% max. | 0.8% max. | 0.5% max. | |
| CuAl9Mn2 | 8.0–10.0% | 1.5% max. | 0.8% max. | 1.5–3.0% | 0.5% max. | |
| CuAl10Fe3 | 8.5–11.0% | 2.0–4.0% | 1.0% max. | 2.0% max. | 0.5% max. | |
| CuAl10Fe5Ni5 | 8.5–11.5% | 2.0–6.0% | 4.0–6.0% | 2.0% max. | 0.5% max. |
| Properties | Metric | Imperial |
| Hardness, Rockwell C | 27 | 27 |
| Tensile strength (M30 and O61 tempers) | 690 MPa | 100000 psi |
| Yield strength (M30 and O61 tempers) | 380 MPa | 55100 psi |
| Elongation at break (in 50 mm, 1% reduction in area) | 1.00% | 1.00% |
| Elastic modulus | 117 GPa | 17000 ksi |
| Compressive yield strength (at permanent set of 0.1%) | 450 MPa | 65300 psi |
| Compressive yield strength (at permanent set of 1%) | 880 MPa | 128000 psi |
| Poisson’s ratio | 0.34 | 0.34 |
| Charpy impact (@ 18.0 – 100°C/ -0.400 – 212°F, keyhole) | 3.00 J | 2.21 ft-lb |
| Izod impact (@ 18.0 – 100°C/ -0.400 – 212°F) | 3.00 J | 2.21 ft-lb |
| Fatigue strength (@# of cycles 1.00e+8, M30 temper) | 460 MPa | 66700 psi |
| Machinability (UNS C36000 (free-cutting brass) = 100) | 20 | 20 |
| Shear modulus | 42.3 GPa | 6140 ksi |
At Hakan Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Aluminium Bronze Sheets and Plates in Istanbul, Turkey, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Turkey, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These Aluminium Bronze Sheets and Plates find extensive use in marine, chemical, aerospace, and heavy engineering sectors. They’re perfect for crafting components like pump and valve parts, propellers, ship fittings, bearing plates, and wear-resistant parts that are regularly exposed to seawater and corrosive substances. Their ability to withstand erosion, cavitation, and stress corrosion cracking makes them suitable for both static and dynamic applications. Engineers and designers often choose Aluminium Bronze Sheets and Plates for critical components where durability, reliability, and corrosion resistance are vital for long-term success.
